Tutorial

[1]:
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

from sklearn.datasets import fetch_california_housing
from sklearn.metrics import mean_absolute_error
from sklearn.metrics import mean_squared_error
from sklearn.preprocessing import KBinsDiscretizer
[2]:
from ropwr import RobustPWRegression
from optbinning.binning.outlier import RangeDetector

Basic

To get us started, let’s load a well-known dataset from the UCI repository and transform the data into a pandas.DataFrame.

[3]:
class Data:
    def __init__(self, data, target, feature_names):
        self.data = data
        self.target = target
        self.feature_names = feature_names


def load_boston():
    data_url = "http://lib.stat.cmu.edu/datasets/boston"
    raw_df = pd.read_csv(data_url, sep=r"\s+", skiprows=22, header=None)
    raw_data = np.hstack([raw_df.values[::2, :], raw_df.values[1::2, :2]])
    target = raw_df.values[1::2, 2]
    feature_names = ['CRIM', 'ZN', 'INDUS', 'CHAS', 'NOX', 'RM', 'AGE', 'DIS',
                     'RAD', 'TAX', 'PTRATIO', 'B', 'LSTAT']

    return Data(raw_data, target, feature_names)
[4]:
data = load_boston()
df = pd.DataFrame(data.data, columns=data.feature_names)

To ease the representation of the solution and performance metrics, we use the following auxiliary function.

[5]:
def report(x, y, pw, splits, alpha=0.5):
    idx = np.argsort(x)
    xs = x[idx]
    ys = y[idx]
    pred = pw.predict(xs)

    mse = mean_squared_error(y_true=ys, y_pred=pred)
    mae = mean_absolute_error(y_true=ys, y_pred=pred)

    plt.plot(xs, ys, 'o', alpha=alpha)
    plt.plot(xs, pred, '-', linewidth=2, label=f"MSE={mse:.3f}. MAE={mae:.3f}")

    for s in splits:
        plt.axvline(s, color="grey", linestyle="--")

    plt.legend()
    plt.show()

Until version 0.3.0 the user was required to provide a list of split points. Since version 0.4.0 two unsupervised binning techniques, equal-size (“uniform”) and equal-frequency interval (“quantile”) from scikit-learn KBinsDiscretizer are available. To make this tutorial compatible with previous versions, we compute the split points externally.

[6]:
variable = "AGE"
x = df[variable].values
y = data.target
[7]:
est = KBinsDiscretizer(n_bins=10, strategy="quantile")
est.fit(x.reshape(-1, 1), y)
splits = est.bin_edges_[0][1:-1]

There are 9 split points, therefore 10 bins.

[8]:
splits
[8]:
array([26.95, 37.8 , 52.4 , 65.4 , 77.5 , 85.9 , 91.8 , 95.6 , 98.8 ])

Import and instantiate an RobustPWRegression object class. Then we call fit with arrays x, y and splits.

[9]:
pw = RobustPWRegression()
[10]:
pw.fit(x, y, splits)
[10]:
RobustPWRegression()

The attribute coef_returns the coefficients of the piecewise regression for each bin.

[11]:
pw.coef_
[11]:
array([[ 2.63677424e+01,  8.02505909e-02],
       [ 3.54433847e+01, -2.56507939e-01],
       [ 2.81643952e+01, -6.39420794e-02],
       [ 2.28603838e+01,  3.72795133e-02],
       [ 4.20632314e+01, -2.56342009e-01],
       [ 3.10243037e+01, -1.13904232e-01],
       [ 2.00180639e+01,  1.42242861e-02],
       [ 1.14218262e+02, -1.01192166e+00],
       [ 1.97364661e+01, -2.36183578e-02],
       [ 6.16982408e+01, -4.48332677e-01]])
[12]:
report(x, y, pw, splits)
../_images/tutorials_tutorial_19_0.png

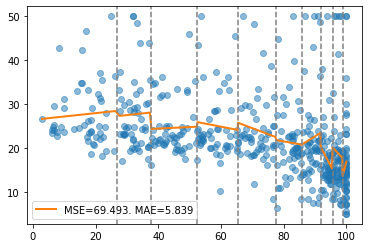

By default, a continuous piecewise regression is fitted, however, this constraint can be deactivated using continuous=False.

[13]:
pw = RobustPWRegression(continuous=False)
pw.fit(x, y, splits=splits)
[13]:
RobustPWRegression(continuous=False)
[14]:
report(x, y, pw, splits)
../_images/tutorials_tutorial_22_0.png

Monotonicity

In many applications, it is required to impose certain monotonicity constraints on some features. Six monotonic trends are considered: ascending, descending, convex, concave, peak and valley.

Version 1.0.0 introduced the option to fit a smooth degree \(d\)-polynomial with \(d-1\) continuity in derivatives (splines). By default continuous_deriv is set to True.

In the following, we minimize the \(l_1-\)norm with a quadratic function impose descending monotonicity.

[15]:
pw = RobustPWRegression(objective="l1", degree=2, continuous_deriv=False,
                        monotonic_trend="descending")
pw.fit(x, y, splits)
[15]:
RobustPWRegression(continuous_deriv=False, degree=2,
                   monotonic_trend='descending', objective='l1')
[16]:
report(x, y, pw, splits)

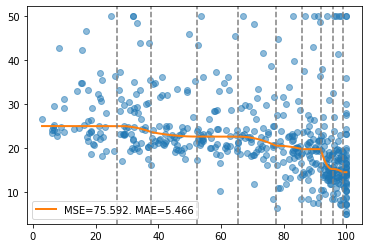

../_images/tutorials_tutorial_27_0.png

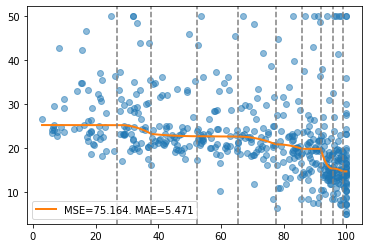

Similar, using the Huber function as an objective.

[17]:
pw = RobustPWRegression(objective="huber", degree=2, continuous_deriv=False,
                        monotonic_trend="descending")
pw.fit(x, y, splits)
[17]:
RobustPWRegression(continuous_deriv=False, degree=2,
                   monotonic_trend='descending', objective='huber')
[18]:
report(x, y, pw, splits)
../_images/tutorials_tutorial_30_0.png

Now, we select a different variable for testing other basic options. This variable shows a less steady relationship with the target.

[19]:
variable = "NOX"
x = df[variable].values
y = data.target
[20]:
est = KBinsDiscretizer(n_bins=10, strategy="quantile")
est.fit(x.reshape(-1, 1), y)
splits = est.bin_edges_[0][1:-1]
[21]:
pw = RobustPWRegression(objective="l2", degree=1, monotonic_trend=None)
pw.fit(x, y, splits)
[21]:
RobustPWRegression()
[22]:
report(x, y, pw, splits)

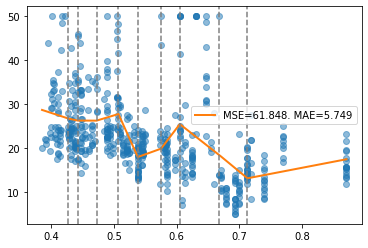

../_images/tutorials_tutorial_35_0.png

The relationship with the target exhibits a sort of U-shaped trend. Let’s try to force convexity.

[23]:
pw = RobustPWRegression(objective="l1", degree=1, monotonic_trend="convex")
pw.fit(x, y, splits)
[23]:
RobustPWRegression(monotonic_trend='convex', objective='l1')
[24]:
report(x, y, pw, splits)
../_images/tutorials_tutorial_38_0.png

To reduce the mean squared error (MSE) and mean absolute error (MAE), we replace convex by valley.

[25]:
pw = RobustPWRegression(objective="l1", degree=1, monotonic_trend="valley")
pw.fit(x, y, splits)
[25]:
RobustPWRegression(monotonic_trend='valley', objective='l1')
[26]:
report(x, y, pw, splits)
../_images/tutorials_tutorial_41_0.png

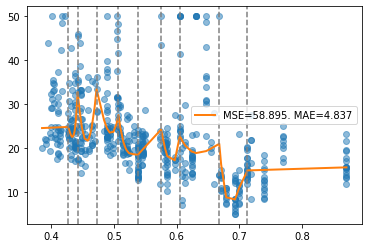

Note that, for degree >= 2 and convex/concave monotonicity, the monotonicity constraint is only satisfied at each bin individually. For this case, selecting \(l_1\)-norm, we notice that the LP solver HIGHS performs better.

[27]:
pw = RobustPWRegression(objective="l1", degree=3, continuous_deriv=False,
                        monotonic_trend="convex", solver="highs")
pw.fit(x, y, splits)
[27]:
RobustPWRegression(continuous_deriv=False, degree=3, monotonic_trend='convex',
                   objective='l1', solver='highs')
[28]:
report(x, y, pw, splits)
../_images/tutorials_tutorial_44_0.png

For those cases, we recommend avoiding splits points and fit a polynomial directly or constraining continuous derivatives at the split point.

[29]:
pw = RobustPWRegression(objective="l1", degree=3, monotonic_trend="convex")
pw.fit(x, y, splits=None)
[29]:
RobustPWRegression(degree=3, monotonic_trend='convex', objective='l1')
[30]:
report(x, y, pw, splits=[])

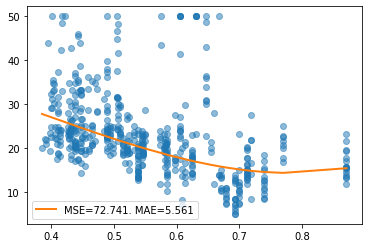

../_images/tutorials_tutorial_47_0.png
[31]:
pw = RobustPWRegression(objective="l1", degree=3, continuous_deriv=True,
                        monotonic_trend="convex", solver="highs")
pw.fit(x, y, splits)
[31]:
RobustPWRegression(degree=3, monotonic_trend='convex', objective='l1',
                   solver='highs')
[32]:
report(x, y, pw, splits)

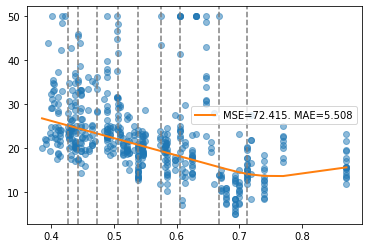

../_images/tutorials_tutorial_49_0.png

Advanced

For the advanced section, we load a larger dataset.

[33]:
data = fetch_california_housing()

df = pd.DataFrame(data.data, columns=data.feature_names)
df["target"] = data.target
x = df["MedInc"].values
y = df["target"].values
[34]:
est = KBinsDiscretizer(n_bins=15, strategy="quantile")
est.fit(x.reshape(-1, 1), y)
splits = est.bin_edges_[0][1:-1]

If the trend of the relationship with the target is unclear, use the default piecewise regression.

[35]:
pw = RobustPWRegression(solver="osqp")
pw.fit(x, y, splits)
[35]:
RobustPWRegression(solver='osqp')
[36]:
report(x, y, pw, splits)

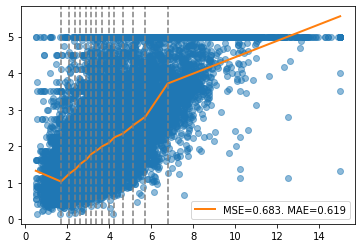

../_images/tutorials_tutorial_56_0.png

We observe an ascending monotonic trend. Let’s impose ascending monotonicity and show the solver’s output.

[37]:
pw = RobustPWRegression(objective="l2", monotonic_trend="ascending", verbose=True)
pw.fit(x, y, splits)
===============================================================================
                                     CVXPY
                                     v1.2.1
===============================================================================
(CVXPY) Dec 17 11:18:50 PM: Your problem has 30 variables, 2 constraints, and 0 parameters.
(CVXPY) Dec 17 11:18:50 PM: It is compliant with the following grammars: DCP, DQCP
(CVXPY) Dec 17 11:18:50 PM: (If you need to solve this problem multiple times, but with different data, consider using parameters.)
(CVXPY) Dec 17 11:18:50 PM: CVXPY will first compile your problem; then, it will invoke a numerical solver to obtain a solution.
-------------------------------------------------------------------------------
                                  Compilation
-------------------------------------------------------------------------------
(CVXPY) Dec 17 11:18:50 PM: Compiling problem (target solver=OSQP).
(CVXPY) Dec 17 11:18:50 PM: Reduction chain: CvxAttr2Constr -> Qp2SymbolicQp -> QpMatrixStuffing -> OSQP
(CVXPY) Dec 17 11:18:50 PM: Applying reduction CvxAttr2Constr
(CVXPY) Dec 17 11:18:50 PM: Applying reduction Qp2SymbolicQp
(CVXPY) Dec 17 11:18:50 PM: Applying reduction QpMatrixStuffing
(CVXPY) Dec 17 11:18:50 PM: Applying reduction OSQP
(CVXPY) Dec 17 11:18:50 PM: Finished problem compilation (took 4.049e-02 seconds).
-------------------------------------------------------------------------------
                                Numerical solver
-------------------------------------------------------------------------------
(CVXPY) Dec 17 11:18:50 PM: Invoking solver OSQP  to obtain a solution.
-----------------------------------------------------------------
           OSQP v0.6.0  -  Operator Splitting QP Solver
              (c) Bartolomeo Stellato,  Goran Banjac
        University of Oxford  -  Stanford University 2019
-----------------------------------------------------------------
problem:  variables n = 30, constraints m = 44
          nnz(P) + nnz(A) = 116
settings: linear system solver = qdldl,
          eps_abs = 1.0e-05, eps_rel = 1.0e-05,
          eps_prim_inf = 1.0e-04, eps_dual_inf = 1.0e-04,
          rho = 1.00e-01 (adaptive),
          sigma = 1.00e-06, alpha = 1.60, max_iter = 10000
          check_termination: on (interval 25),
          scaling: on, scaled_termination: off
          warm start: on, polish: on, time_limit: off

iter   objective    pri res    dua res    rho        time
   1  -6.0212e+04   2.79e-03   4.32e+04   1.00e-01   2.49e-04s
 150  -1.0169e+05   4.63e-06   1.31e-01   3.16e-04   8.46e-04s
plsh  -1.0169e+05   1.10e-13   2.39e-04   --------   4.47e-03s

status:               solved
solution polish:      successful
number of iterations: 150
optimal objective:    -101686.7435
run time:             4.47e-03s
optimal rho estimate: 4.64e-04

-------------------------------------------------------------------------------
                                    Summary
-------------------------------------------------------------------------------
(CVXPY) Dec 17 11:18:50 PM: Problem status: optimal
(CVXPY) Dec 17 11:18:50 PM: Optimal value: -1.017e+05
(CVXPY) Dec 17 11:18:50 PM: Compilation took 4.049e-02 seconds
(CVXPY) Dec 17 11:18:50 PM: Solver (including time spent in interface) took 1.952e-02 seconds
[37]:
RobustPWRegression(monotonic_trend='ascending', verbose=True)

The Quadratic Programming (QP) solver OSQP (solver="osqp") is chosen. The option solver="auto" selects the most appropriate solver given the user’s parameters. We can switch to the ECOS solver using solver="ecos".

[38]:
pw = RobustPWRegression(objective="l2", monotonic_trend="ascending", solver="ecos",
                        verbose=True)
pw.fit(x, y, splits)
===============================================================================
                                     CVXPY
                                     v1.2.1
===============================================================================
(CVXPY) Dec 17 11:18:58 PM: Your problem has 30 variables, 2 constraints, and 0 parameters.
(CVXPY) Dec 17 11:18:58 PM: It is compliant with the following grammars: DCP, DQCP
(CVXPY) Dec 17 11:18:58 PM: (If you need to solve this problem multiple times, but with different data, consider using parameters.)
(CVXPY) Dec 17 11:18:58 PM: CVXPY will first compile your problem; then, it will invoke a numerical solver to obtain a solution.
-------------------------------------------------------------------------------
                                  Compilation
-------------------------------------------------------------------------------
(CVXPY) Dec 17 11:18:58 PM: Compiling problem (target solver=ECOS).
(CVXPY) Dec 17 11:18:58 PM: Reduction chain: Dcp2Cone -> CvxAttr2Constr -> ConeMatrixStuffing -> ECOS
(CVXPY) Dec 17 11:18:58 PM: Applying reduction Dcp2Cone
(CVXPY) Dec 17 11:18:58 PM: Applying reduction CvxAttr2Constr
(CVXPY) Dec 17 11:18:58 PM: Applying reduction ConeMatrixStuffing
(CVXPY) Dec 17 11:18:58 PM: Applying reduction ECOS
(CVXPY) Dec 17 11:18:58 PM: Finished problem compilation (took 8.742e-02 seconds).
-------------------------------------------------------------------------------
                                Numerical solver
-------------------------------------------------------------------------------
(CVXPY) Dec 17 11:18:58 PM: Invoking solver ECOS  to obtain a solution.

ECOS 2.0.7 - (C) embotech GmbH, Zurich Switzerland, 2012-15. Web: www.embotech.com/ECOS

It     pcost       dcost      gap   pres   dres    k/t    mu     step   sigma     IR    |   BT
 0  +0.000e+00  -0.000e+00  +1e+04  5e-01  3e-04  1e+00  4e+02    ---    ---    1  1  - |  -  -
 1  +1.850e+00  +1.884e+00  +2e+02  1e-02  6e-06  6e-02  7e+00  0.9795  1e-04   3  3  3 |  0  0
 2  +9.096e+01  +9.134e+01  +3e+01  1e-03  5e-07  4e-01  9e-01  0.9522  5e-02   7  8  8 |  0  0
 3  +1.183e+02  +1.183e+02  +9e-01  3e-05  1e-08  1e-02  3e-02  0.9808  1e-04   2  3  3 |  0  0
 4  +1.187e+02  +1.187e+02  +2e-01  8e-06  2e-09  4e-03  6e-03  0.8242  5e-02   2  2  2 |  0  0
 5  +1.188e+02  +1.188e+02  +5e-03  5e-07  7e-11  2e-04  2e-04  0.9789  1e-02   6  5  5 |  0  0
 6  +1.188e+02  +1.188e+02  +4e-04  2e-07  6e-12  1e-05  1e-05  0.9204  3e-03   6  5  5 |  0  0
 7  +1.188e+02  +1.188e+02  +3e-05  1e-07  4e-13  1e-06  1e-06  0.9844  5e-02   1  2  2 |  0  0
 8  +1.188e+02  +1.188e+02  +6e-07  7e-09  4e-14  2e-08  2e-08  0.9890  5e-03   7  4  5 |  0  0

OPTIMAL (within feastol=7.0e-09, reltol=4.8e-09, abstol=5.7e-07).
Runtime: 0.172480 seconds.

-------------------------------------------------------------------------------
                                    Summary
-------------------------------------------------------------------------------
(CVXPY) Dec 17 11:18:59 PM: Problem status: optimal
(CVXPY) Dec 17 11:18:59 PM: Optimal value: 1.188e+02
(CVXPY) Dec 17 11:18:59 PM: Compilation took 8.742e-02 seconds
(CVXPY) Dec 17 11:18:59 PM: Solver (including time spent in interface) took 1.749e-01 seconds
[38]:
RobustPWRegression(monotonic_trend='ascending', solver='ecos', verbose=True)

Note that ECOS is significantly slower for this problem. However, the Second Order Cone Programming (SOCP) solver ECOS is more versatile, handling all the objectives and regularizations options available. Additionally, is better suited for large problems occurring when bounds are imposed.

Regularization

A regularization term using \(l_1-\)norm (Lasso) \(l_2-\)norm (Ridge) can be added to the objective function.

[39]:
pw = RobustPWRegression(objective="huber", monotonic_trend="ascending",
                        degree=2, regularization="l1", verbose=True)
pw.fit(x, y, splits)
===============================================================================
                                     CVXPY
                                     v1.2.1
===============================================================================
(CVXPY) Dec 17 11:19:07 PM: Your problem has 45 variables, 2 constraints, and 0 parameters.
(CVXPY) Dec 17 11:19:07 PM: It is compliant with the following grammars: DCP, DQCP
(CVXPY) Dec 17 11:19:07 PM: (If you need to solve this problem multiple times, but with different data, consider using parameters.)
(CVXPY) Dec 17 11:19:07 PM: CVXPY will first compile your problem; then, it will invoke a numerical solver to obtain a solution.
-------------------------------------------------------------------------------
                                  Compilation
-------------------------------------------------------------------------------
(CVXPY) Dec 17 11:19:07 PM: Compiling problem (target solver=ECOS).
(CVXPY) Dec 17 11:19:07 PM: Reduction chain: Dcp2Cone -> CvxAttr2Constr -> ConeMatrixStuffing -> ECOS
(CVXPY) Dec 17 11:19:07 PM: Applying reduction Dcp2Cone
(CVXPY) Dec 17 11:19:07 PM: Applying reduction CvxAttr2Constr
(CVXPY) Dec 17 11:19:07 PM: Applying reduction ConeMatrixStuffing
(CVXPY) Dec 17 11:19:08 PM: Applying reduction ECOS
(CVXPY) Dec 17 11:19:08 PM: Finished problem compilation (took 3.434e-01 seconds).
-------------------------------------------------------------------------------
                                Numerical solver
-------------------------------------------------------------------------------
(CVXPY) Dec 17 11:19:08 PM: Invoking solver ECOS  to obtain a solution.

ECOS 2.0.7 - (C) embotech GmbH, Zurich Switzerland, 2012-15. Web: www.embotech.com/ECOS

It     pcost       dcost      gap   pres   dres    k/t    mu     step   sigma     IR    |   BT
 0  +0.000e+00  -6.012e+03  +5e+05  8e-01  5e+00  1e+00  6e+00    ---    ---    2  1  - |  -  -
 1  +4.636e+02  -4.432e+03  +4e+05  7e-01  7e-01  2e+00  5e+00  0.2691  5e-01   2  1  1 |  0  0
 2  +2.760e+03  +1.008e+03  +2e+05  4e-01  9e-02  1e+00  2e+00  0.7340  2e-01   1  1  1 |  0  0
 3  +7.243e+03  +6.626e+03  +7e+04  2e-01  3e-02  5e-01  8e-01  0.7508  2e-01   2  1  1 |  0  0
 4  +8.544e+03  +8.096e+03  +5e+04  1e-01  3e-02  4e-01  6e-01  0.4625  4e-01   2  2  2 |  0  0
 5  +1.038e+04  +1.015e+04  +3e+04  6e-02  2e-02  2e-01  3e-01  0.5611  1e-01   2  1  2 |  0  0
 6  +1.133e+04  +1.121e+04  +1e+04  3e-02  1e-02  1e-01  2e-01  0.5575  2e-01   2  1  2 |  0  0
 7  +1.172e+04  +1.165e+04  +9e+03  2e-02  1e-02  6e-02  1e-01  0.6270  4e-01   1  1  2 |  0  0
 8  +1.242e+04  +1.240e+04  +2e+03  6e-03  4e-03  1e-02  3e-02  0.8201  9e-02   2  2  2 |  0  0
 9  +1.252e+04  +1.250e+04  +1e+03  3e-03  3e-03  8e-03  2e-02  0.4706  2e-01   1  1  2 |  0  0
10  +1.259e+04  +1.259e+04  +7e+02  2e-03  1e-03  4e-03  9e-03  0.6524  2e-01   2  2  1 |  0  0
11  +1.259e+04  +1.259e+04  +7e+02  2e-03  1e-03  4e-03  9e-03  0.1773  8e-01   1  1  2 |  0  0
12  +1.262e+04  +1.262e+04  +5e+02  1e-03  1e-03  3e-03  6e-03  0.3122  4e-02   2  1  1 |  0  0
13  +1.265e+04  +1.265e+04  +2e+02  6e-04  5e-04  1e-03  3e-03  0.9890  5e-01   1  2  1 |  0  0
14  +1.266e+04  +1.266e+04  +2e+02  4e-04  4e-04  9e-04  2e-03  0.3928  4e-01   1  1  1 |  0  0
15  +1.267e+04  +1.267e+04  +1e+02  3e-04  3e-04  6e-04  1e-03  0.9890  7e-01   2  1  1 |  0  0
16  +1.268e+04  +1.268e+04  +1e+01  3e-05  3e-05  7e-05  2e-04  0.9890  1e-01   1  1  1 |  0  0
17  +1.268e+04  +1.268e+04  +2e+00  5e-06  5e-06  1e-05  3e-05  0.8704  2e-02   2  1  1 |  0  0
18  +1.268e+04  +1.268e+04  +7e-01  2e-06  1e-06  3e-06  8e-06  0.9890  3e-01   2  1  1 |  0  0
19  +1.268e+04  +1.268e+04  +8e-02  2e-07  2e-07  4e-07  1e-06  0.8933  1e-02   2  1  1 |  0  0
20  +1.268e+04  +1.268e+04  +1e-02  3e-08  3e-08  7e-08  2e-07  0.9890  2e-01   2  1  1 |  0  0
21  +1.268e+04  +1.268e+04  +3e-04  7e-10  6e-10  1e-09  3e-09  0.9809  6e-04   2  1  1 |  0  0
22  +1.268e+04  +1.268e+04  +3e-06  2e-10  6e-12  2e-11  4e-11  0.9890  1e-04   2  1  1 |  0  0

OPTIMAL (within feastol=1.6e-10, reltol=2.5e-10, abstol=3.1e-06).
Runtime: 3.229647 seconds.

-------------------------------------------------------------------------------
                                    Summary
-------------------------------------------------------------------------------
(CVXPY) Dec 17 11:19:11 PM: Problem status: optimal
(CVXPY) Dec 17 11:19:11 PM: Optimal value: 1.268e+04
(CVXPY) Dec 17 11:19:11 PM: Compilation took 3.434e-01 seconds
(CVXPY) Dec 17 11:19:11 PM: Solver (including time spent in interface) took 3.243e+00 seconds
[39]:
RobustPWRegression(degree=2, monotonic_trend='ascending', objective='huber',
                   regularization='l1', verbose=True)
[40]:
report(x, y, pw, splits)

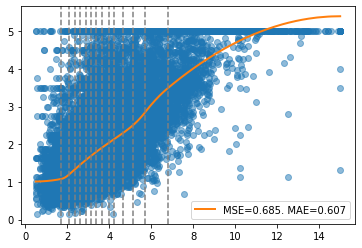

../_images/tutorials_tutorial_65_0.png
[41]:
pw = RobustPWRegression(objective="l2", monotonic_trend="ascending",
                        regularization="l2", verbose=True)
pw.fit(x, y, splits)
===============================================================================
                                     CVXPY
                                     v1.2.1
===============================================================================
(CVXPY) Dec 17 11:19:17 PM: Your problem has 30 variables, 2 constraints, and 0 parameters.
(CVXPY) Dec 17 11:19:17 PM: It is compliant with the following grammars: DCP, DQCP
(CVXPY) Dec 17 11:19:17 PM: (If you need to solve this problem multiple times, but with different data, consider using parameters.)
(CVXPY) Dec 17 11:19:17 PM: CVXPY will first compile your problem; then, it will invoke a numerical solver to obtain a solution.
-------------------------------------------------------------------------------
                                  Compilation
-------------------------------------------------------------------------------
(CVXPY) Dec 17 11:19:17 PM: Compiling problem (target solver=ECOS).
(CVXPY) Dec 17 11:19:17 PM: Reduction chain: Dcp2Cone -> CvxAttr2Constr -> ConeMatrixStuffing -> ECOS
(CVXPY) Dec 17 11:19:17 PM: Applying reduction Dcp2Cone
(CVXPY) Dec 17 11:19:17 PM: Applying reduction CvxAttr2Constr
(CVXPY) Dec 17 11:19:17 PM: Applying reduction ConeMatrixStuffing
(CVXPY) Dec 17 11:19:17 PM: Applying reduction ECOS
(CVXPY) Dec 17 11:19:17 PM: Finished problem compilation (took 7.603e-02 seconds).
-------------------------------------------------------------------------------
                                Numerical solver
-------------------------------------------------------------------------------
(CVXPY) Dec 17 11:19:17 PM: Invoking solver ECOS  to obtain a solution.

ECOS 2.0.7 - (C) embotech GmbH, Zurich Switzerland, 2012-15. Web: www.embotech.com/ECOS

It     pcost       dcost      gap   pres   dres    k/t    mu     step   sigma     IR    |   BT
 0  +0.000e+00  -0.000e+00  +1e+04  9e-01  3e-04  1e+00  4e+02    ---    ---    1  1  - |  -  -
 1  +1.166e+00  +1.320e+00  +1e+03  7e-02  3e-05  3e-01  4e+01  0.8967  5e-04   3  3  3 |  0  0
 2  -3.517e+00  -2.508e+00  +9e+02  4e-02  2e-05  1e+00  3e+01  0.2528  1e-01   4  5  5 |  0  0
 3  -1.504e+01  -1.024e+01  +7e+02  1e-02  2e-05  5e+00  2e+01  0.3347  4e-01   5  5  5 |  0  0
 4  +3.145e+01  +3.210e+01  +9e+01  6e-03  2e-06  7e-01  3e+00  0.8796  3e-03   5  5  5 |  0  0
 5  +1.099e+02  +1.101e+02  +1e+01  8e-04  2e-07  2e-01  3e-01  0.9227  3e-02   3  3  3 |  0  0
 6  +1.201e+02  +1.202e+02  +2e+00  1e-04  4e-08  7e-02  5e-02  0.9682  1e-01   2  2  2 |  0  0
 7  +1.212e+02  +1.213e+02  +5e-01  5e-05  1e-08  2e-02  2e-02  0.7164  4e-02   2  2  2 |  0  0
 8  +1.217e+02  +1.217e+02  +1e-01  1e-05  4e-09  7e-03  4e-03  0.8770  2e-01   9  9  9 |  0  0
 9  +1.218e+02  +1.218e+02  +2e-02  3e-06  6e-10  1e-03  7e-04  0.8365  2e-02   1  2  2 |  0  0
10  +1.218e+02  +1.218e+02  +6e-03  8e-07  2e-10  3e-04  2e-04  0.7269  2e-02   7  6  7 |  0  0
11  +1.218e+02  +1.218e+02  +2e-03  3e-07  6e-11  1e-04  6e-05  0.8013  1e-01   6  5  5 |  0  0
12  +1.218e+02  +1.218e+02  +3e-04  8e-08  9e-12  2e-05  1e-05  0.8615  2e-02   1  2  2 |  0  0
13  +1.218e+02  +1.218e+02  +2e-05  2e-08  6e-13  1e-06  7e-07  0.9484  2e-02   5  4  4 |  0  0
14  +1.218e+02  +1.218e+02  +3e-06  6e-09  9e-14  2e-07  1e-07  0.8664  2e-02   1  2  2 |  0  0
15  +1.218e+02  +1.218e+02  +6e-07  3e-09  2e-14  3e-08  2e-08  0.8299  3e-02   9  6  6 |  0  0

OPTIMAL (within feastol=3.0e-09, reltol=5.2e-09, abstol=6.3e-07).
Runtime: 0.329856 seconds.

-------------------------------------------------------------------------------
                                    Summary
-------------------------------------------------------------------------------
(CVXPY) Dec 17 11:19:17 PM: Problem status: optimal
(CVXPY) Dec 17 11:19:17 PM: Optimal value: 1.218e+02
(CVXPY) Dec 17 11:19:17 PM: Compilation took 7.603e-02 seconds
(CVXPY) Dec 17 11:19:17 PM: Solver (including time spent in interface) took 3.304e-01 seconds
[41]:
RobustPWRegression(monotonic_trend='ascending', regularization='l2',
                   verbose=True)
[42]:
report(x, y, pw, splits)

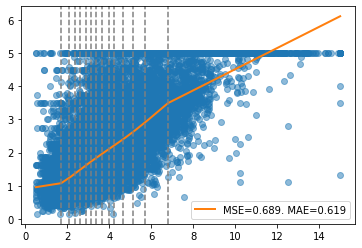

../_images/tutorials_tutorial_67_0.png

Increasing the regularization term using parameters reg_l1 and reg_l2 will produce a smoother piecewise regression.

Lower and upper bound

In some circumstances, it is required to impose a lower or upper limit to the prediction. For example, if we are predicting house prices, we might need to fix a minimum and maximum price. Parameters lb and ub in method fit impose these constraints.

[43]:
pw = RobustPWRegression(objective="l2", monotonic_trend="ascending", verbose=True)
pw.fit(x, y, splits, lb=1, ub=5)
===============================================================================
                                     CVXPY
                                     v1.2.1
===============================================================================
(CVXPY) Dec 17 11:19:31 PM: Your problem has 30 variables, 4 constraints, and 0 parameters.
(CVXPY) Dec 17 11:19:31 PM: It is compliant with the following grammars: DCP, DQCP
(CVXPY) Dec 17 11:19:31 PM: (If you need to solve this problem multiple times, but with different data, consider using parameters.)
(CVXPY) Dec 17 11:19:31 PM: CVXPY will first compile your problem; then, it will invoke a numerical solver to obtain a solution.
-------------------------------------------------------------------------------
                                  Compilation
-------------------------------------------------------------------------------
(CVXPY) Dec 17 11:19:31 PM: Compiling problem (target solver=ECOS).
(CVXPY) Dec 17 11:19:31 PM: Reduction chain: Dcp2Cone -> CvxAttr2Constr -> ConeMatrixStuffing -> ECOS
(CVXPY) Dec 17 11:19:31 PM: Applying reduction Dcp2Cone
(CVXPY) Dec 17 11:19:31 PM: Applying reduction CvxAttr2Constr
(CVXPY) Dec 17 11:19:31 PM: Applying reduction ConeMatrixStuffing
(CVXPY) Dec 17 11:19:31 PM: Applying reduction ECOS
(CVXPY) Dec 17 11:19:31 PM: Finished problem compilation (took 7.374e-02 seconds).
-------------------------------------------------------------------------------
                                Numerical solver
-------------------------------------------------------------------------------
(CVXPY) Dec 17 11:19:31 PM: Invoking solver ECOS  to obtain a solution.

ECOS 2.0.7 - (C) embotech GmbH, Zurich Switzerland, 2012-15. Web: www.embotech.com/ECOS

It     pcost       dcost      gap   pres   dres    k/t    mu     step   sigma     IR    |   BT
 0  +0.000e+00  -5.033e+00  +1e+04  3e-01  3e-04  1e+00  3e+02    ---    ---    1  1  - |  -  -
 1  -2.286e+00  -3.017e+00  +4e+03  1e-01  9e-05  1e+00  1e+02  0.6852  4e-03   3  3  3 |  0  0
 2  +7.203e+00  +7.182e+00  +1e+02  6e-03  4e-06  6e-02  4e+00  0.9592  1e-04   4  3  3 |  0  0
 3  +8.125e+01  +8.142e+01  +5e+01  2e-03  1e-06  2e-01  1e+00  0.7076  6e-02   8  9  9 |  0  0
 4  +1.173e+02  +1.173e+02  +2e+00  5e-05  2e-08  1e-02  6e-02  0.9799  8e-04   8  9  9 |  0  0
 5  +1.189e+02  +1.189e+02  +8e-02  2e-06  9e-10  5e-04  2e-03  0.9613  1e-03   2  2  2 |  0  0
 6  +1.190e+02  +1.190e+02  +2e-03  1e-07  2e-11  1e-05  4e-05  0.9808  1e-04   5  8  9 |  0  0
 7  +1.190e+02  +1.190e+02  +6e-05  2e-08  7e-13  4e-07  2e-06  0.9628  5e-04   4  6  6 |  0  0
 8  +1.190e+02  +1.190e+02  +2e-06  5e-09  5e-14  1e-08  4e-08  0.9728  7e-04   3  4  4 |  0  0
 9  +1.190e+02  +1.190e+02  +2e-07  5e-09  9e-15  3e-09  7e-09  0.8840  3e-02   3  6  6 |  0  0

OPTIMAL (within feastol=5.0e-09, reltol=2.0e-09, abstol=2.3e-07).
Runtime: 0.217148 seconds.

-------------------------------------------------------------------------------
                                    Summary
-------------------------------------------------------------------------------
(CVXPY) Dec 17 11:19:31 PM: Problem status: optimal
(CVXPY) Dec 17 11:19:31 PM: Optimal value: 1.190e+02
(CVXPY) Dec 17 11:19:31 PM: Compilation took 7.374e-02 seconds
(CVXPY) Dec 17 11:19:31 PM: Solver (including time spent in interface) took 2.187e-01 seconds
[43]:
RobustPWRegression(monotonic_trend='ascending', verbose=True)
[44]:
report(x, y, pw, splits)

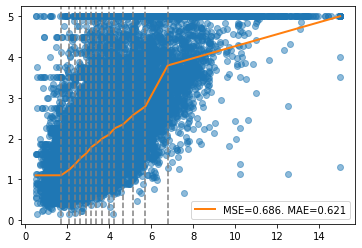

../_images/tutorials_tutorial_72_0.png

As previously mentioned, ECOS is more adequate when bounds are active. OSQP requires more than 11 seconds to solve this problem and returns an inacurate solution. For large scale problems, a general alternative is the solver SCS.

[45]:
pw = RobustPWRegression(objective="l2", solver="scs", monotonic_trend="ascending",
                        verbose=True)
pw.fit(x, y, splits, lb=1, ub=5)
===============================================================================
                                     CVXPY
                                     v1.2.1
===============================================================================
(CVXPY) Dec 17 11:19:49 PM: Your problem has 30 variables, 4 constraints, and 0 parameters.
(CVXPY) Dec 17 11:19:49 PM: It is compliant with the following grammars: DCP, DQCP
(CVXPY) Dec 17 11:19:49 PM: (If you need to solve this problem multiple times, but with different data, consider using parameters.)
(CVXPY) Dec 17 11:19:49 PM: CVXPY will first compile your problem; then, it will invoke a numerical solver to obtain a solution.
-------------------------------------------------------------------------------
                                  Compilation
-------------------------------------------------------------------------------
(CVXPY) Dec 17 11:19:49 PM: Compiling problem (target solver=SCS).
(CVXPY) Dec 17 11:19:49 PM: Reduction chain: Dcp2Cone -> CvxAttr2Constr -> ConeMatrixStuffing -> SCS
(CVXPY) Dec 17 11:19:49 PM: Applying reduction Dcp2Cone
(CVXPY) Dec 17 11:19:49 PM: Applying reduction CvxAttr2Constr
(CVXPY) Dec 17 11:19:49 PM: Applying reduction ConeMatrixStuffing
(CVXPY) Dec 17 11:19:49 PM: Applying reduction SCS
(CVXPY) Dec 17 11:19:49 PM: Finished problem compilation (took 6.646e-02 seconds).
-------------------------------------------------------------------------------
                                Numerical solver
-------------------------------------------------------------------------------
(CVXPY) Dec 17 11:19:49 PM: Invoking solver SCS  to obtain a solution.
----------------------------------------------------------------------------
        SCS v2.1.2 - Splitting Conic Solver
        (c) Brendan O'Donoghue, Stanford University, 2012
----------------------------------------------------------------------------
Lin-sys: sparse-direct, nnz in A = 41360
eps = 1.00e-04, alpha = 1.50, max_iters = 5000, normalize = 1, scale = 1.00
acceleration_lookback = 10, rho_x = 1.00e-03
Variables n = 31, constraints m = 20689
Cones:  primal zero / dual free vars: 14
        linear vars: 34
        soc vars: 20641, soc blks: 1
Setup time: 6.78e-02s
----------------------------------------------------------------------------
 Iter | pri res | dua res | rel gap | pri obj | dua obj | kap/tau | time (s)
----------------------------------------------------------------------------
     0| 1.41e+19  6.72e+19  1.00e+00 -1.84e+20  1.26e+22  1.15e+22  2.54e-02
   100| 1.79e-07  3.16e-04  6.03e-07  1.19e+02  1.19e+02  3.58e-16  4.52e-01
   120| 8.65e-08  5.21e-06  3.95e-08  1.19e+02  1.19e+02  2.12e-16  5.43e-01
----------------------------------------------------------------------------
Status: Solved
Timing: Solve time: 5.44e-01s
        Lin-sys: nnz in L factor: 62122, avg solve time: 3.14e-04s
        Cones: avg projection time: 4.04e-05s
        Acceleration: avg step time: 3.43e-03s
----------------------------------------------------------------------------
Error metrics:
dist(s, K) = 4.5629e-16, dist(y, K*) = 0.0000e+00, s'y/|s||y| = 1.6437e-15
primal res: |Ax + s - b|_2 / (1 + |b|_2) = 8.6547e-08
dual res:   |A'y + c|_2 / (1 + |c|_2) = 5.2132e-06
rel gap:    |c'x + b'y| / (1 + |c'x| + |b'y|) = 3.9539e-08
----------------------------------------------------------------------------
c'x = 118.9762, -b'y = 118.9762
============================================================================
-------------------------------------------------------------------------------
                                    Summary
-------------------------------------------------------------------------------
(CVXPY) Dec 17 11:19:49 PM: Problem status: optimal
(CVXPY) Dec 17 11:19:49 PM: Optimal value: 1.190e+02
(CVXPY) Dec 17 11:19:49 PM: Compilation took 6.646e-02 seconds
(CVXPY) Dec 17 11:19:49 PM: Solver (including time spent in interface) took 6.393e-01 seconds
[45]:
RobustPWRegression(monotonic_trend='ascending', solver='scs', verbose=True)
